Attribute Mapping in Keycloak During OIDC Identity Brokering

Last updated: March 2026

Introduction

In this article, we look at how to perform attribute mapping in Skycloak or Keycloak when a user authenticates through an external Identity Provider (IdP) using Keycloak’s OpenID Connect Identity Broker feature. This is a key capability of Keycloak’s identity providers support.

For illustration, we use Auth0 as the external IdP.

How it works

I had written previously an article available here, on selecting upfront the Identity Broker by adding an additional query string parameter. While this is not mandatory, referring to that article may still be helpful (use auth0 instead of github in the example code).

In this article, we focus purely on the Identity Brokering aspect — specifically, how Keycloak communicates with Auth0, which acts as the OIDC provider. This approach is useful when a client application wants to authenticate users through an external IdP while Keycloak acts as an Identity Broker and maintains its own internal user copy. This is a core part of enabling single sign-on across multiple identity sources.

Once a user clicks Sign-in with Auth0 at the Keycloak login page (in cases where an upfront IdP selection is not passed), Keycloak redirects the user to Auth0. After successful authentication, Auth0 issues tokens to Keycloak. Keycloak then processes these tokens using its identity brokering flows.

Pre-requisites

1. A client application configured with Keycloak
2. An OpenID Connect client configured at Auth0
3. An Identity Provider configuration for Auth0 in Keycloak

If you just want to test attribute mapping without involving your own client application, you can simply use the Keycloak account-console application that ships with Skycloak or Keycloak.

In this article, we focus on copying the following Auth0 user attributes into Keycloak:

• email
• phone_number

If you are working with custom user attributes in tokens, see our related guide on using custom user attributes in Keycloak OIDC tokens.

Understanding How Keycloak Creates the User

Near the end of the identity brokering process, Keycloak executes the First Broker Login flow.

This flow ensures that a corresponding Keycloak user is created the first time an external IdP user logs in.

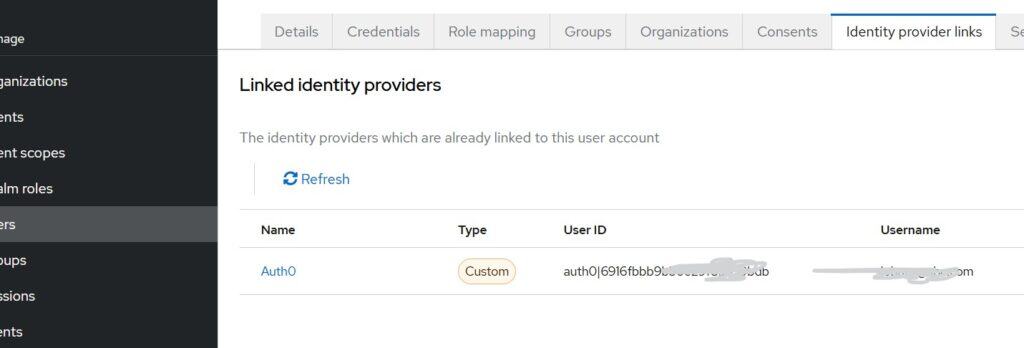

For example, in the Identity Provider Links tab of a user, you will see the Auth0 user ID stored.

In my case, I encountered issues in mapping the Auth0 username into Keycloak, so I used the Auth0 email as the Keycloak username. This workaround is acceptable for this demonstration where the focus is attribute mapping.

Configuration Steps

Step 1 — Configuring OIDC client for Keycloak at Auth0

From the Auth0 dashboard:

1. Go to Applications
2. Click Create Application
3. Select Regular Web Application
4. Click Create

Make note of the following:

• Allowed Callback URLs https://<your_skycloak_hostname>/realms/<your_realm>/broker/auth0/endpoint (You will get this value from Keycloak while creating Identity Broker for Auth0 at Keycloak)
• Allowed Logout URL https://<your_skycloak_hostname>/realms/broker/auth0/endpoint/logout_response
• Allowed Web origin https://<your_skycloak_hostname>

Finally, copy the Client ID and Client Secret, which will be required in Keycloak.

Step 2 — Configure Auth0 as an Identity Provider in Keycloak

You can create Identity Providers either from:

• Skycloak Console -> SSO, or
• Keycloak Admin Console -> Identity Providers

For Auth0, choose OpenID Connect v1.0.

Key settings:

• Alias: auth0
• Redirect URI: It should appear pre-populated and must match the Callback URL configured in Auth0
• Discovery Endpoint: https://<your_Auth0_domain_name>/.well-known/openid-configuration — Click Show Metadata
• Enter Client ID and Client Secret (the values from Auth0)

For more on configuring OpenID Connect providers in Keycloak, refer to the Keycloak Identity Broker documentation.

Additional Steps for Attribute Mapping

We want to store the Auth0 user’s email and phone number in Keycloak.

a. Create the phone number attribute in Keycloak

Keycloak does not include a phone_number attribute by default.

Create one via:

Realm Settings -> User Profile -> Attributes -> Create Attribute

• Attribute name: phoneNumber

b. Add scopes to the identity provider

Navigate to:

Identity Providers -> auth0 -> Expand Advanced

Set Scopes to:

openid profile email phone

This ensures Auth0 includes email and phone number in the token.

Mapping Attributes During First Login

Navigate to:

Identity Providers -> auth0 -> Mappers -> Add Mapper

• For username
  • Since Auth0 does not always provide a stable username claim, I chose to set the Keycloak username to the user’s Auth0 email using the Username Template Importer mapper.
  • Mapper type: Username Template Importer
  • Template: ${CLAIM.email}
• For email
  • Mapper Type: Attribute Importer
  • Claim: email
  • User Attribute: email
• For phone number
  • Mapper Type: Attribute Importer
  • Claim: phone_number
  • User Attribute: phoneNumber

These mappers allow Keycloak to store Auth0’s email and phone number in the local user profile.

Testing the integration

For testing, we can use:

1. Any client application that selects Auth0 upfront
2. A Keycloak-secured application where you choose Sign-in with Auth0
3. The built-in account-console application in Keycloak

Before testing:

• Ensure the Auth0 user’s email and phone number are marked as verified in Auth0.

During first login, Keycloak may prompt you to fill missing profile information (e.g., first name, last name). After the first login, the prompts will no longer appear because the user is already linked and mapped.

You can verify the mapped attributes appear correctly in your tokens using the JWT Token Analyzer.

Note:

If you want to receive the mapped attributes in tokens sent from Keycloak to your application, you must configure additional client mappers. That will be covered in a separate article.

Summary

In this article, we explored how Keycloak (or Skycloak) can copy user attributes from an external OIDC Identity Provider — in this case, Auth0 — into its internal user store using the Identity Broker feature.
