How to Run Keycloak Behind a Reverse Proxy?

Lately, I’ve been asked to assist with setting up Keycloak behind a reverse proxy. While it may seem straightforward to redirect calls to the new backend, in this case, Keycloak, the reality is more complex. In this blog post, we will delve into the parameters essential for successfully configuring Keycloak behind a reverse proxy.


I’ll keep this guide light by providing example settings for Nginx. However, the underlying principles remain consistent across different platforms (HAProxy, IIS, etc.). For more detailed information, you can visit the official Keycloak documentation on reverse proxy setup: Keycloak Reverse Proxy Settings.

Before diving into the tutorial, please ensure you have Docker and Docker-compose installed on your system. This tutorial uses Docker and Docker-compose to create a reproducible environment for everyone. We’ll start with this basic Keycloak setup, which you can easily launch and use for following along with the steps provided in this guide.

Here is the basic skeleton (you can also use the setup from our Postgres migration post):

version: '3'

services:
  keycloak:
    image: quay.io/keycloak/keycloak:23.0.7
    environment:
      KEYCLOAK_ADMIN: test
      KEYCLOAK_ADMIN_PASSWORD: test
      KC_LOG_LEVEL: INFO
    ports:
      - "8080:8080"
    command:
      - start-dev

Once you have your docker-compose ready. Start using:

docker-compose up

You should see the logs of keycloak appearing. You should see the following:

Updating the configuration and installing your custom providers, if any. Please wait.
2024-03-06T16:05:08.425614961Z 2024-03-06 16:05:08,424 INFO  [io.quarkus.deployment.QuarkusAugmentor] (main) Quarkus augmentation completed in 3600ms
2024-03-06T16:05:09.878982087Z 2024-03-06 16:05:09,072 INFO  [org.keycloak.quarkus.runtime.hostname.DefaultHostnameProvider] (main) Hostname settings: Base URL: <unset>, Hostname: <request>, Strict HTTPS: false, Path: <request>, Strict BackChannel: false, Admin URL: <unset>, Admin: <request>, Port: -1, Proxied: false
2024-03-06T16:05:09.997134670Z 2024-03-06 16:05:09,996 WARN  [io.quarkus.agroal.runtime.DataSources] (main) Datasource <default> enables XA but transaction recovery is not enabled. Please enable transaction recovery by setting quarkus.transaction-manager.enable-recovery=true, otherwise data may be lost if the application is terminated abruptly
[......]
2024-03-06T16:05:14.542879464Z 2024-03-06 16:05:14,542 INFO  [org.keycloak.services] (main) KC-SERVICES0050: Initializing master realm
2024-03-06T16:05:15.453571464Z 2024-03-06 16:05:15,453 INFO  [io.quarkus] (main) Keycloak 23.0.7 on JVM (powered by Quarkus 3.2.10.Final) started in 6.955s. Listening on: http://0.0.0.0:8080
[.....]

Let’s keep in mind the 2 following lines:

2024-03-06T16:05:09.878982087Z 2024-03-06 16:05:09,072 INFO  [org.keycloak.quarkus.runtime.hostname.DefaultHostnameProvider] (main) Hostname settings: Base URL: <unset>, Hostname: <request>, Strict HTTPS: false, Path: <request>, Strict BackChannel: false, Admin URL: <unset>, Admin: <request>, Port: -1, Proxied: false
2024-03-06T16:05:15.453571464Z 2024-03-06 16:05:15,453 INFO  [io.quarkus] (main) Keycloak 23.0.7 on JVM (powered by Quarkus 3.2.10.Final) started in 6.955s. Listening on: http://0.0.0.0:8080

Here is what we remember with these 2 lines:

ParameterValue Details
Network interface0.0.0.0Accessible through all interfaces locally. We will use localhost for now.
Exposed Port8080This means Keycloak is exposed to port 8080, requests made on a different port won’t reach Keycloak.
Base URLUnset = /This means all resources will be fetched from / and nothing else. This can be changed with –http-relative-path (KC_HTTP_RELATIVE_PATH) parameter.
Strict HTTPSFalseThis means HTTPs is not enforced. This is ok since our proxy will do that work in the future.

Afterwards, you should be able to access your Keycloak administration console:

Use test as username and password. You should be able to login to the console and land on the master realm:

Great job reaching this stage! Now, let’s delve into adding a reverse proxy. But first, what exactly is a reverse proxy, and why is it essential for serving requests to our Keycloak server?

What is a Reverse Proxy?

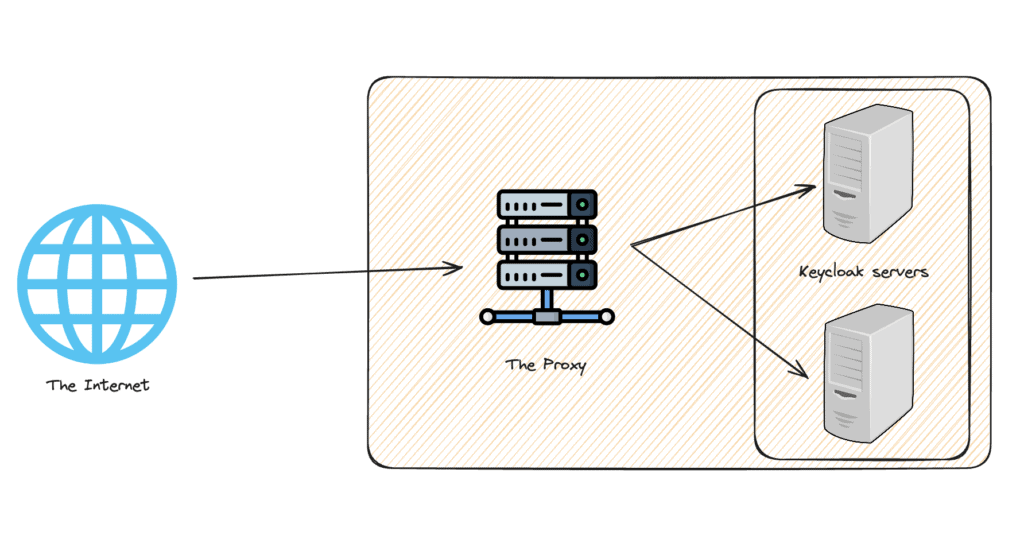

A reverse proxy is a server that sits in front of one or more web servers, intercepting requests from clients. This server provides a gateway between users and your application, acting as an intermediary for requests directed to the backend servers. Reverse proxies are used for load balancing, improved security, caching content to speed up loading times, and handling SSL/TLS encryption.

Why Use a Reverse Proxy for Keycloak?

Couple of reasons why:

  1. Security: It adds an additional layer of defense, helping protect against attacks by hiding the identity of your Keycloak servers.
  2. Load Balancing: It distributes incoming traffic among multiple Keycloak servers, ensuring no single server becomes overloaded, leading to better performance and reliability.
  3. Sticky Session: This feature ensures that client requests from the same session are directed to the same backend server each time.
  4. SSL Termination: It handles incoming HTTPS connections, decrypting requests and passing them to the backend servers as HTTP. This offloads encryption tasks from Keycloak, improving performance by reducing your CPU load.
  5. Caching: It can store static content, reducing the number of requests to the backend, which in turn reduces latency and improves the user experience.
  6. Compression: It can compress outgoing files, speeding up load times for end-users with slower internet connections.

Convinced? Let’s see how to set it up for Keycloak.

How to Setup a Reverse Proxy for Keycloak?

For Keycloak to function correctly behind a reverse proxy, it must recognize that it is serving a proxy rather than a direct user. This recognition is facilitated using HTTP headers, which indicate the original source of the requests. For more details, refer to this article: Understanding X-Forwarded-Headers and Their Usage.

We will proceed under the assumption that the network between the proxy and Keycloak is trustworthy and does not require re-encryption of communication. Please adjust this assumption based on your specific situation. We will also assume that you know how to redirect requests towards Keycloak with your own proxy (in this nginx example, we will use proxy_pass).

There are 2 types of forwarded headers. You don’t need to setup both. Either you use X-Forwarded-* or Forwarded. Let’s see how to set them up.

X-Forwarded Headers

WhatWhyHow
Make the reverse proxy forward the X-Forwarded-For headerTo forward the original client’s IP addressIn nginx:
proxy_set_header X-Forwarded-For $proxy_protocol_addr;
Make the reverse proxy forward the X-Forwarded-Proto headerTo forward the original protocol (HTTP or HTTPS)In nginx:
proxy_set_header X-Forwarded-Proto $scheme;
Make the reverse proxy forward the X-Forwarded-Host headerTo forward the original hostIn nginx:
proxy_set_header X-Forwarded-Host $host;

Forwarded Headers

WhatWhyHow
Make the reverse proxy forward the Forwarded headerThis new header will have all the information of the X-Forwarded-* headersIn Nginx, adding the Forwarded header is slightly more complex since there isn’t a direct variable available for this. However, you can simulate its effect following instructions from the Nginx documentation (https://www.nginx.com/resources/wiki/start/topics/examples/forwarded/#how-to-use-it-in-nginx). Once set up, you can implement the header in your configuration like so:
proxy_set_header Forwarded $proxy_add_forwarded;

Once you have configured the reverse proxy to forward the right headers, you need to setup Keycloak to know it’s behind a reverse proxy.

Keycloak Configuration

WhatWhyHow
Let Keycloak know which type of headers are being forwarded. “Forwarded” or “X-Forwarded-*If not specified, Keycloak will treat itself as if there was no proxy running.When starting Keycloak, provide the headers type using –proxy-headers parameter.
For the new Forwarded header:
bin/kc.[sh|bat] start --proxy-headers forwarded

For the legacy X-Forwarded-*
bin/kc.[sh|bat] start --proxy-headers xforwarded

Environment variable: KC_PROXY_HEADERS
Set Keycloak to HTTP mode and let the reverse proxy terminate the TLS connection (recommended)If you enforce HTTPS at the proxy and at Keycloak as well, you will double the workWhen starting Keycloak, provide the –http-enabled parameter:
bin/kc.[sh|bat] start –http-enabled=true

Environment variable: KC_HTTP_ENABLED
Set Keycloak to accept any hostname when receiving requests (recommended)This will allow you to manage your hostname at a different level and keep it centralized. If your domain name changes tomorrow, you don’t need to worry about your reverse proxy and all your Keycloak instances.When starting Keycloak, provide the –hostname-strict parameter:
bin/kc.[sh|bat] start –hostname-strict=false

Environment variable: KC_HOSTNAME_STRICT
Set Keycloak base path to the expected path your proxy will server your auth requirements.If you will redirect users to /auth, but Keycloak is expecting / as the base path, you will get 404s when redirects to resources are made.When starting Keycloak, provide the –http-relative-path parameter:
bin/kc.[sh|bat] start –http-relative-path=/

Environment variable: KC_HTTP_RELATIVE_PATH
DEPRECATED in future version. Using the parameters above will be enough.

Set Keycloak proxy mode to edge
By doing so, you allow the proxy to terminate TLS and start communicating with Keycloak using HTTP.When starting Keycloak, provide the –proxy parameter:
bin/kc.[sh|bat] start –proxy=edge

Environment variable: KC_PROXY

To test the setup by adding Nginx to the docker-compose file, you have two options. You can create a Dockerfile to build your custom Nginx configuration and use it in the docker-compose file, or you can map a local directory containing your Nginx configuration file to the appropriate directory inside the Nginx container. If your system allows volume mapping, the latter can be a more straightforward option for development environments. Here’s how you could approach it:

The Dockerfile

FROM nginx:1.25.4

COPY ./conf/nginx.conf /etc/nginx/nginx.conf

The nginx configuration

worker_processes 1;

events { worker_connections 1024; }

http {
    server {
        listen 80;

        location / {
            proxy_pass         http://keycloak:8080;

            proxy_set_header X-Forwarded-For $proxy_protocol_addr;
             proxy_set_header X-Forwarded-Proto $scheme;
             proxy_set_header X-Forwarded-Host $host;
             proxy_set_header X-Forwarded-Port 8888;
        }
    }
}

The final docker-compose

version: '3'

services:
  nginx:
    build: .
    ports:
      - "8888:80"

  keycloak:
    image: quay.io/keycloak/keycloak:23.0.7
    environment:
      KC_PROXY_HEADERS: xforwarded
      KC_HTTP_ENABLED: true
      KC_PROXY: edge
      KC_HOSTNAME_STRICT: false
      KEYCLOAK_ADMIN: test
      KEYCLOAK_ADMIN_PASSWORD: test
      KC_LOG_LEVEL: INFO
    ports:
      - "8080:8080"
    command:
      - start-dev

When you now open your browser and navigate to http://localhost:8888, you should see the Keycloak login page. Then you can proceed to login and even watch the network requests and confirm there are no errors.

Common Issues

Now that you’re familiar with setting up a reverse proxy, let’s explore some common errors you might encounter.

ProblemCauseSolution
You are getting redirected to the backend endpoint when clicking on a link. Then you may get a “DNS_PROBE_FINISHED_NXDOMAIN” error.Keycloak doesn’t know it is being proxied. It could be the headers are missing orkeycloak is not set to the correct proxy mode.Make sure that proxy parameter is set to “edge”.
Either with KC_PROXY or –proxy.

Make sure the headers are forwarded in the proxy.
The hostname is correct. but the port is not kept when clicking on a link. You usually get an ERR_CONNECTION_REFUSEDKeycloak redirect to the good host, but not the good port. Make sure X-Forwarded-Port is pointing to the Proxy port.In nginx:
proxy_set_header X-Forwarded-Port 8888;
Most of your resources are returning 404sThe proxy is not directing the requests to the right backend endpoint of Keycloak. i.e. Keycloak is expecting xxx:8080/base/resources/xxx.png, but the proxy is requesting at xxx:8080/base/auth/resources/xxx.pngMake sure the proxy is using the expected path by Keycloak, otherwise you will get Not found errors.

Also, if your proxy is sendin all the request to /base and keycloak base path starts with /auth, you will get plenty 404s. Make sure that they match.

The environment variable is KC_HTTP_RELATIVE_PATH or –http-relative-path as cli.
You receive a bad gateway error (502)This simply means that the proxy cannot connect to Keycloak. It may be a misconfiguration on the proxy side if Keycloak is up and runningIf keycloak is running on port 8787 for example, make sure the proxy is targeting the exact same port.

This can also occur if Keycloak is restarting and is not available yet.

In nginx, we could reproduce this error by reffering to the wrong keycloak port.
You get a 403 preventing you (or your user) to get access to your account-consoleIf you are behind a proxy, Keycloak doesn’t know if its host is localhost or the domain assigned to it. Hence the need to pass the proxy settings. In doing so, when the proxy pass the details proxy v2 information (i.e. x-forwarded-for), it can impersonate the domain.

But! If there is one misconfiguration, you may be let to think to set your web origin to * to make it work. This is dangerous and opens you up to the internet accessing your account-console URL.
Make sure that Keycloak knows it is behind a proxy. Look at your settings. If you are using hostname v2, make sure the type of proxy header is defined otherwise, all request will be set to passthrough which will cause this issue specially on clients with required same web origin.
