Client Credentials Flow with Skycloak and Node.js

Client Credentials Flow with Skycloak and Node.js. Learn Client Credentials flow using Skycloak and Node.js. Implement secure machine-to-machine authentication with practical examples.

Introduction

Keycloak provides support for registering client applications using standard protocols like OIDC and SAML.

In addition, Skycloak offers a more user-friendly approach to registering applications through guided templates.

In this blog, we explore the Machine-to-Machine (M2M) flow, also known as the Client Credentials Grant, using a Node.js-based application template.

Overview

The Client Credentials Grant (defined in OAuth 2.0) is used when:

• ❌ No user is involved
• ✅ Communication happens between applications (service-to-service)

Typical Use Case

A microservice obtains an access token and calls another service.

Example:

• Order Service → gets token from Keycloak
• Order Service → calls Payment Service using Bearer token

Authorization: Bearer <access_token>

Important Concept: Service Accounts

In this flow:

• Each client has a service account
• Roles can be assigned to this service account
• These roles appear in the access token

This enables fine-grained authorization between services.

Architecture Flow

1. Client sends request to token endpoint
2. Identity Provider validates client credentials
3. Access token is issued
4. Client calls protected API using token

Implementation Steps (Skycloak Console)

Navigate to Skycloak Console

Select Cluster and Realm

Go to:

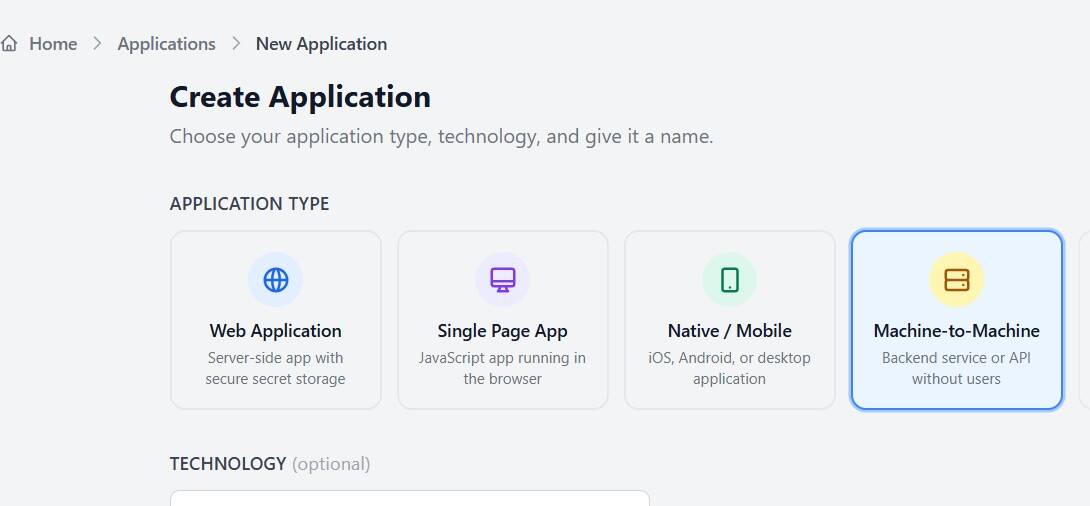

Applications → Create Application

Choose:

• Machine-to-Machine
• Node.js API template

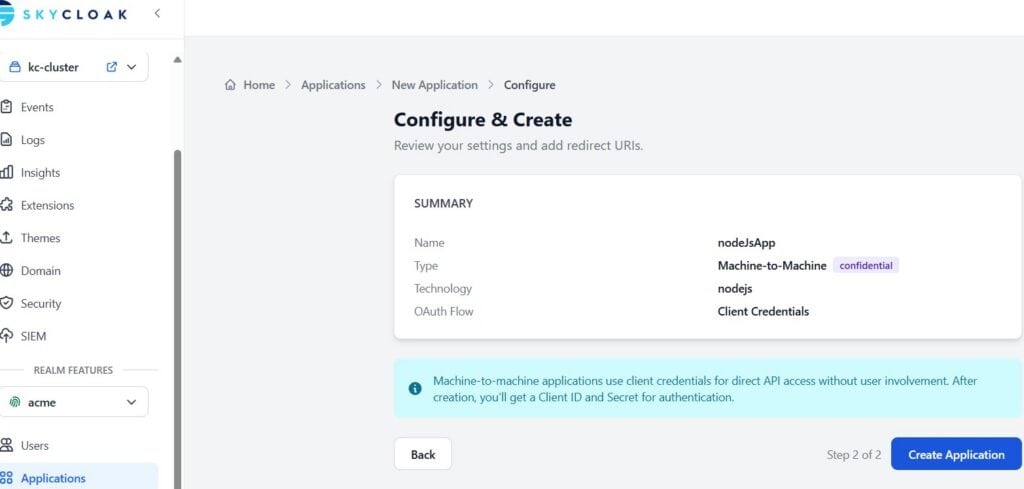

Enter application name (e.g., nodeJSApp)

Click Continue → Create Application

Important Configuration

After creation:

• Note down:
  • Client ID
  • Client Secret ⚠️ (Keep confidential)

Testing the implementaion

Step 1: Initialize Project

npm init -y
npm install axios dotenv

Optional (if exposing APIs):

npm install express helmet

Step 2: Create .env File

TOKEN_URL=https://<skycloak_hostname>/realms/<realm-name>/protocol/openid-connect/token
CLIENT_ID=your-client-id
CLIENT_SECRET=your-client-secret

Step 3: Create app.js

import axios from "axios"
import 'dotenv/config'

const getToken = async () => {
  const response = await axios.post(
    process.env.TOKEN_URL,
    new URLSearchParams({
      grant_type: "client_credentials",
      client_id: process.env.CLIENT_ID,
      client_secret: process.env.CLIENT_SECRET
    }),
    { headers: { "Content-Type": "application/x-www-form-urlencoded" } }
  )

  return response.data.access_token
}

const main = async () => {
  const token = await getToken()
  console.log("Access Token:", token)
}

main()

Step 4: Edit package.json (extract below)

{
  //..........
  "scripts": {
    "start": "node app.js"
  }
  //..........
}

Step 5: Run the application

npm start

Assigning Roles

To enable authorization:

In Keycloak Console

1. Go to Client → Service Account Roles
2. Assign:
   • Realm roles OR
   • Client roles

These roles will appear in the token and can be used by downstream services.

Best Practices

🔐 Security

• Never expose CLIENT_SECRET
• Use:
  • Environment variables
  • Secret managers (Vault, AWS Secrets Manager)

Performance

• Cache access tokens until expiry
• Avoid requesting token on every API call

Summary

In this article, we explored:

• Machine-to-Machine authentication using Client Credentials
• Application setup using Skycloak templates
• Token generation using Node.js
• Role-based authorization using service accounts

Skycloak simplifies application onboarding by providing a guided and developer-friendly interface, reducing the complexity of configuring Keycloak manually
